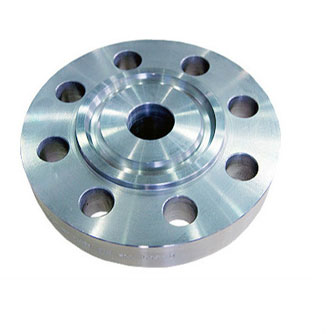

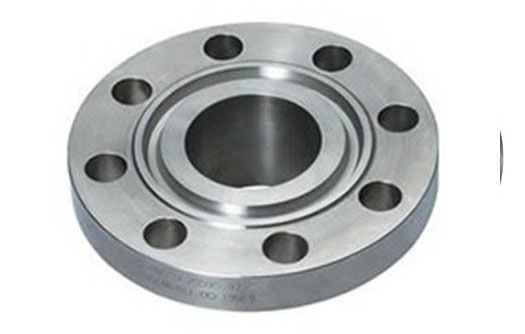

(RTJ) that are best-in-class. A Ring type joint flange(RTJ) is a machined metallic ring with a deep groove cut into its face. This groove rests a metal ring which gets compressed when the connecting bolts of the flange are tightened. This compression results in a leak-proof, close-fitting seal on the pipe or connection. Stainless Steel Ring type Joint Flanges are classically used in high-pressure and high-temperature services, while Carbon Steel Ring type Joint Flanges are spill-proof.
| Dimensions | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, MSS SP-44, BS4504, BS 10, EN-1092, DIN, JIS (10K,16K) ,ASA, API-605, AWWA, GOST |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Size | 1/2” NB To 48” NB /Custom size above as per drawing DN15 To DN1200 /Custom size above as per drawing |
| Class | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| DIN | DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673 DIN Standard ND-6,10, 16, 25, 40 Etc. |
| BS | BS4504 , BS4504, BS1560, BS10 , PN6 , PN10 , PN16 , PN25 , PN40, etc |
| Table | D / E / F / H / J / K |
| API STANDARDS | PSI-2000/3000/5000/10000/ETC |
| JIS Standards | 2220-2004 5k/10k/16k , ETC |
| Brand | MSC |
