The ASME B16.11 standard covers pressure-temperature ratings, dimensions, tolerances, marking, and material requirements for forged carbon and alloy steel. Acceptable material forms are forgings, bars, seamless pipe, and seamless tubes which conform to the fittings chemical compositions, melting practices, and mechanical property requirements of ASTM A105, A182, or A350.ASTM A105 Insert Wledolets Pipe Fittings standard covers pressure-temperature ratings, materials, dimensions, tolerances,marking, testing, and methods of designating openings for fittings.

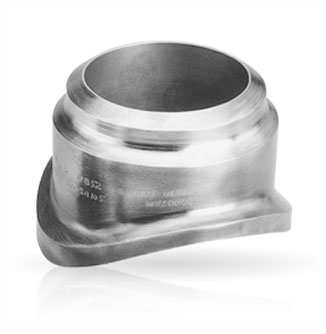

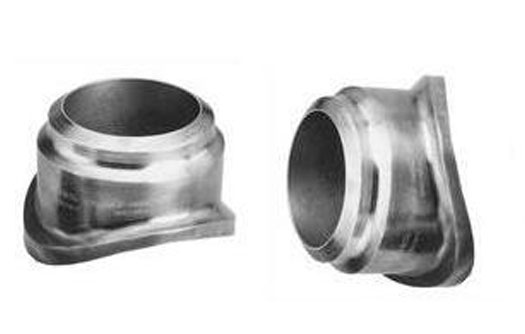

Product: Olets
Size : 1/2'' - 24
Type : Weldolet, Sockolet, Nippolet, Threadolet, Latrolet, Flexolet butt-weld, Flexolet Threaded and Sweepolet
MATERIALS :
Stainless Steel Olets – SS Insert Wledolets
ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Duplex Stainless Steel Olets - Duplex SS Insert Wledolets
ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.
Carbon Steel Olets – CS Insert Wledolets
Standard : ASTM / ASME A/SA 105 / 350 LF 2 / A 516 GR.70 / IS 2062
Alloy Steel Olets – AS Insert Wledolets
Standard : ASTM / ASME A/SA 182 / A 387
Grade : F5, F9, F11, F12, F22, F91.
Nickel Alloy Insert Wledolets :
Standard : ASTM / ASME SB 564 / 160 / 472
Grade : UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3)
Copper Alloy Insert Wledolets
Standard : ASTM / ASME SB 61 / 62 / 151 / 152.
Grade : UNS NO. C 92200, UNS NO. C 83600, UNS NO. 70600, 71500, C 70600 (CU -NI- 90/10), C 71500 (CU -NI- 70/30), UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200
VALUE ADDED SERVICES
Hot Dip Galvanizing
Electro polish
TEST CERTIFICATE
Mill Test Certificate as per EN 10204 / 3.1B
Dimensions of ASTM A105 Insert Wledolets
| Outlet Size |
A' Dimensions (Height above run pipe) | ||||||||||||||
| 1 1/2 | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | |
| Std Wt Run Pipe | 1.50 | 1.50 | 1.62 | 1.75 | 2.00 | 2.25 | 2.38 | 2.75 | 3.06 | 3.38 | 3.50 | 3.75 | 3.81 | 4 | 4.56 |
| XS Run Pipe | 1.50 | 1.50 | 1.62 | 1.75 | 2.00 | 2.25 | 3.06 | 3.87 | 3.69 | 4.06 | 3.81 | 4.19 | 4.38 | 4.69 | 5.50 |
| .500" to .750" Thick Run Pipe | - | - | - | 2.88 | 3.31 | 3.75 | 4.12 | 4.18 | 4.25 | 4.37 | 4.50 | 4.69 | 5.13 | 5.62 | 6.50 |
| .750" to 1.00" Thick Run Pipe | - | - | - | 3.22 | 3.38 | 3.75 | 4.34 | 4.62 | 4.84 | 5.10 | 5.25 | 5.88 | 6.50 | 6.75 | 7.62 |
| 1.00" to 1.25" Thick Run Pipe | - | - | - | 3.38 | 3.50 | 4.00 | 4.50 | 4.88 | 5.00 | 5.38 | 5.50 | 6.00 | 6.50 | 7.00 | 8.00 |
| 1.25" to 1.50" Thick Run Pipe | - | - | - | 3.62 | 3.87 | 4.25 | 4.69 | 5.16 | 5.31 | 5.68 | 5.81 | 6.44 | 6.50 | 7.56 | 8.72 |
| Outlet Size |
*'W' Dimensions (Max. O.D. of fitting - Max. size of hole) | ||||||||||||||
| 1 1/2 | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | |
| Std Wt Run Pipe | 3.50 | 4.25 | 4.88 | 5.69 | 7.00 | 8.06 | 9.71 | 11.71 | 14.00 | 16.32 | 17.56 | 19.75 | 22.00 | 24.00 | 29.00 |
| XS Run Pipe | 3.56 | 4.38 | 5.00 | 5.75 | 7.12 | 8.25 | 10.44 | 13.44 | 14.25 | 16.56 | 18.00 | 20.00 | 22.44 | 25.00 | 30.32 |
